1. Applicable Scope

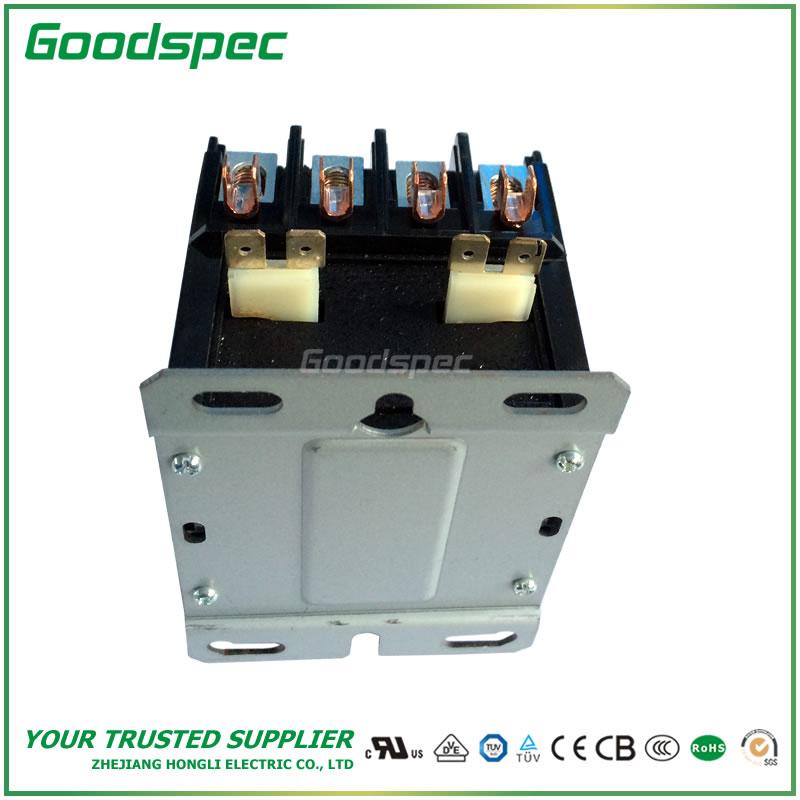

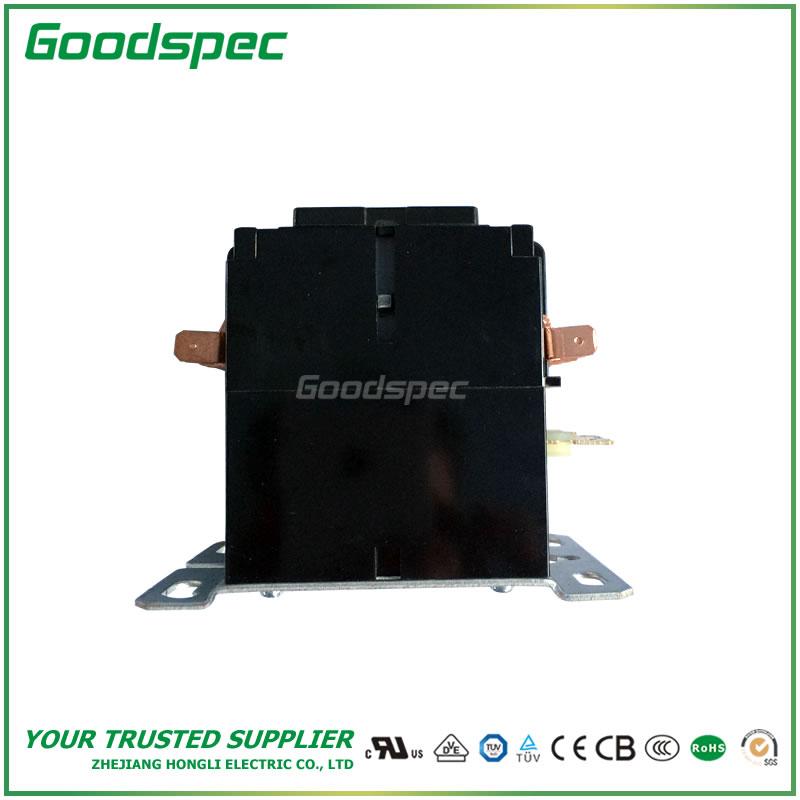

HLR6100-1ATUBCF-VAC240 High Power Relay 1A is 1 pole, nominal current 30A attaches the post (T) primarily, the screw post (B), the printed wiring board uses the post (P) and so on. Is suitable in the compressor, the heater control, the motor, the power source control, the duplicator, the facsimile machine, the flare control, the microwave oven, electric appliances and equipment’s and so on packaging machine and food processing machinery single-phase load circuit’s control. This product has the volume to be small, the weight is light, the coil power loss is low, the contact load is big, anti-impact ability, characteristics and so on redundant reliability.
|
|
2.Type and Meaning
|
|
HL
|
R
|
6100
|
–
|
1A
|
T
|
UB
|
CF
|
-VAC240
|
|
Hongli
Electric
|
Relay
|
Type
|
Packing Y :Individual Box Pack – : Factory Bulk Pack
|
Contact form1A: A group often opens2A:Two groups of often opens
|
T:Quick-connect terminals
P:PCB terminals
B:Screw terminals
|
Mounting construction：UB：Upper bracket type
|
Class F insulation
|
Coil control voltage：240VC
|
|
|
2、 Product Explanation And Main Technical Parameter
|
| ★ Rating of insulation voltage Ui ： 600V |
| ★ Rating of contacts voltage Ue ： AC 277V |
| ★ Rating of current： Ie=30A （ AC-8b ), Ith=40A |
| ★ Mechanical life＞ 10，000，000times |
| ★ Electricity life＞ 100，000times |
| ★ Coil working voltage scope: 70% ～110%Us |
| ★ Product coil working voltage Us=12,24,36,48,110/120,220/240VAC&VDC |
|
| 3、Conforms To The Standard
|
|
Conforms To National Standard And International Standard
|
1 、 Conforms To UL508, IEC60947, GB14048 Standard。 |
|
2 、Approved By UL,ROHS and ISO9001 System Certification(SGS)。 |
|
UL Files Number: E251539
|
|
| 4、Ordering Request
|
|
In Order To Guarantee You Purchase Right, Please Read The Specify Type Before Order.
Relay Specification Model, Pole Number, Coil Control Voltage, Rating Of Operating Current, Wiring Way(Terminal), Whether With Cover ,The Packing Way, Etc
|
If you request as follows: Nominal current: 30A, working voltage: 240/277V, pole number: 1 pole, coil control voltage: 120VDC, wiring way: A group 1/4 ” fast attachment, load: The single-phase perception or the linear load, install the way: The foundation kneading board installment (UB), the insulation grade: CLASS F, packing: 120/each box (factory packing). Then you may the shaping be：HLR6100-1ATUBCF-VAC240
|
Lifts The Samples As Follows (Contains Derivation Type From This Model)
|
Rating of Current
Ie
|
pole number
|
Rating of Coil Control Voltage
|
Control Motor Power
|
|
12VAC
|
24VAC
|
120VAC
|
208/240VAC
|
277VAC
|
240VAC
|
|
30A
|
1P
|
HLR6100-1ATUBCF-VAC12
|
HLR6100-1ATUBCF-VAC24
|
HLR6100-1ATUBCF-VAC120
|
HLR6100-1ATUBCF-VAC240
|
HLR6100-1ATUBCF-VAC277
|
2.5Kw
|
|
Rating of Current
Ie
|
pole number
|
Rating of Coil Control Voltage
|
Control Motor Power
|
|
12VDC
|
24VDC
|
120VDC
|
208/240VDC
|
277VDC
|
240VAC
|
|
30A
|
1P
|
HLR6100-1ATUBCF-VAC12
|
HLR6100-1ATUBCF-VAC24
|
HLR6100-1ATUBCF-VAC120
|
HLR6100-1ATUBCF-VAC240
|
HLR6100-1ATUBCF-VAC277
|
2.5Kw
|
|
| 5. Instruction booklet downioading |
| HLR6100 SERIES RELAYS DownLoad PDF DataSheet
|
