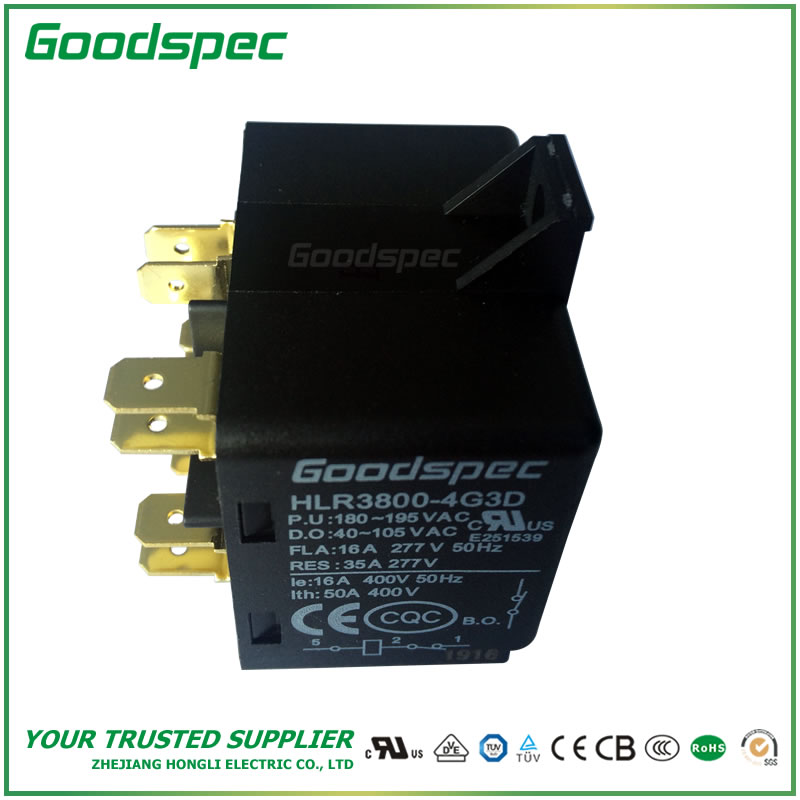

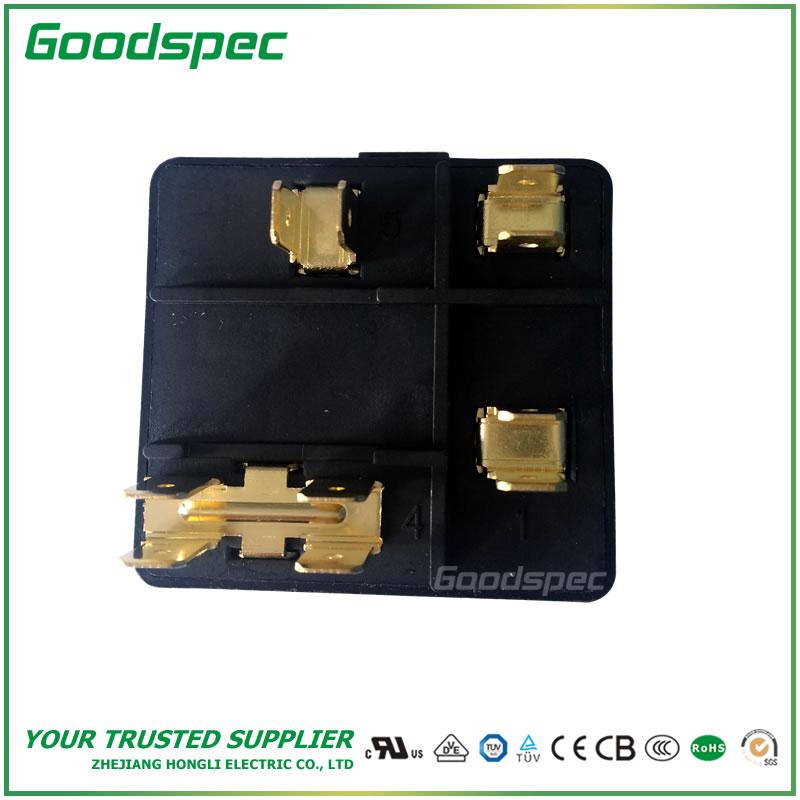

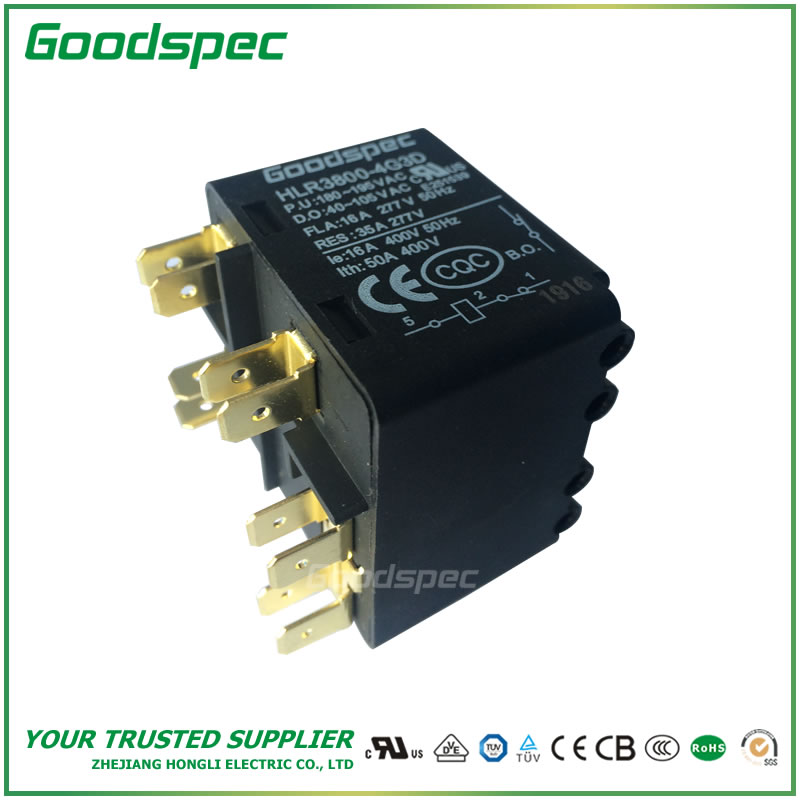

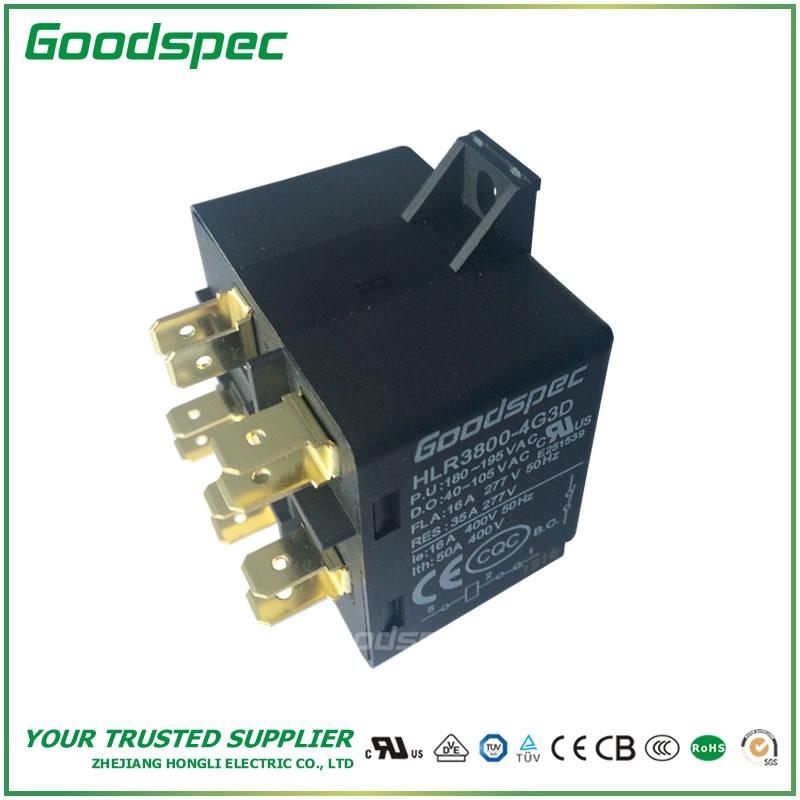

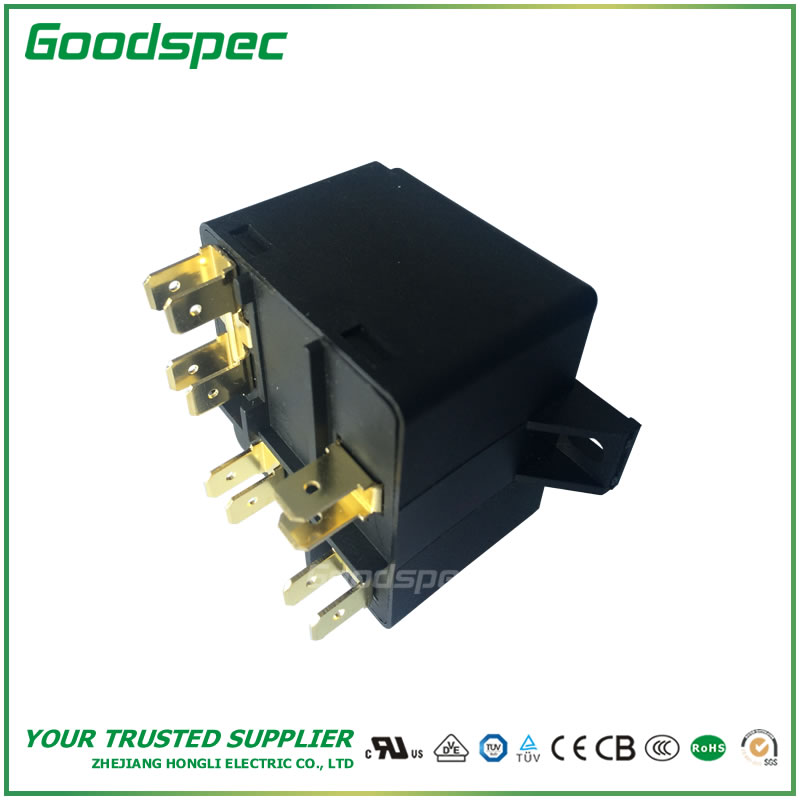

HLR3800-4G3D Potential type Motor starting relay

Original price was: $15.00.Current price is: $13.00.

HLR3800-4G3D Potential type Motor starting relay single-phase motor (compressor) the starting relay mainly uses in exchanging 50/60HZ, the voltage to the 277V control circuit and the nominal current to the 16A power circuit, through starts the electric capacity, the starting single-phase motor (compressor). Is suitable in the air conditioning, the refrigerator and so on industry machine electric appliance equipment and so on domestic electric appliances and water pump.

1200 in stock (can be backordered)

SKU: HLR3800-4G3D Categories: , Tags: , ,

1.Applicable scope & Type description

1 、Applicable scope

HLR3800-4G3D Potential type Motor starting relay single-phase motor (compressor) the starting relay mainly uses in exchanging 50/60HZ, the voltage to the 277V control circuit and the nominal current to the 16A power circuit, through starts the electric capacity, the starting single-phase motor (compressor). Is suitable in the air conditioning, the refrigerator and so on industry machine electric appliance equipment and so on domestic electric appliances and water pump.

2 、Type and meaning
HLR38004 G3D
Hongli ElectricRelayTypeY” :Individual Box Pack
” :Factory Bulk Pack

Coil Number

AG: Expressedt 60HZ
not have symbolized: Expresses 50HZ
Operating characteristicsOperating PositionTerminal configuration
2.Product explanation and major technique parameter
★ Fixed isolation voltage  Ui : 600V
★ Fixed working voltage Ue : AC 277V
★ Fixed operating current: Ie=16A , Ith=35A
★ Normal connection and breaking current: 35A 、Breaking current ability: 96A
★ Mechanical life> 1,000,000 times
★ Electricity life> 100,000 times
★ Coil working voltage scope: 70% ~110%Us
★ Product coil working voltage Us=AC 170 ~ 502V
★ The relay winding (cold clean criticality) can attract reliably in AC 170 ~ 502V gathers, the released voltage is not lower than AC 40V.

3.Conforms To The Standard

Conforms To National Standard And International Standard

1 、Conforms To IEC 60730;GB14048.5,UL508 Standard 。
2 、Approved By  ISO9001 System Certification(SGS)、 CCC,TUV,CE,UL and Safe Certification

CCC Certification Number:

2005010303156716

TUV Certification Number  :

B 05 06 56608 001

UL Files Number:

E251539

CE Certification Number :

N8N 05 06 56608 002

4.Technology Data
Part No.Continuous Coil
Voltage (V)
Pick-up (V)
Drop-out (V)
Max.
Min.Max.
HLR3800-7AD3D168140
153
45
HLR3800-5AN3D395262290140
HLR3800-2AF3D33217118490
HLR3800-5AI3D395204233130
HLR3800-4AP3D420300328121
HLR3800-6AQ3D502314342135
HLR3800-3AG3D375180195105
5.Specification
HLR3800 Series Potential Relay                   DownLoad PDF DataSheet
Weight 0.12 kg
Dimensions 5.5 × 5 × 5.2 cm
Brand

Goodspec, Watz

GTIN

06970307190381
